英制過渡接頭

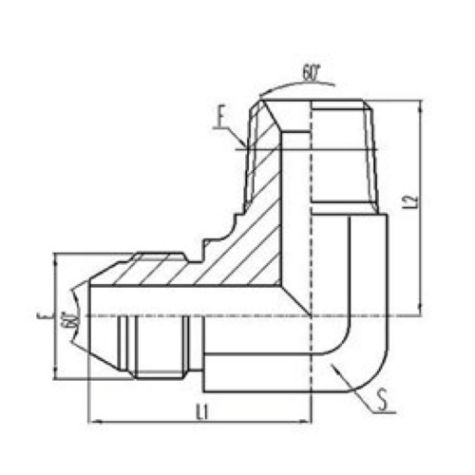

名稱：90°彎英制外螺紋60°外錐面密封|英錐管外螺紋密封
詳細信息
90°彎英制外螺紋60°外錐面密封|英錐管外螺紋密封的詳細介紹：
|
代 號
|
螺紋 THREAD
|
尺 寸 DIMENSIONS
|
|||
|
PART NO. > |
E |
F |
L1 |
L2 |
S |
|
1ST9-02SP
|
G1/8"X28
|
R1/8"X28
|
21.8
|
21
|
11
|
|
1ST9-02-04SP
|
G1/8"X28
|
R1/4"X19
|
24.3
|
25.5
|
14
|
|
1ST9-04-02SP
|
G1/4"X19
|
R1/8"X28
|
26.3
|
23.5
|
14
|
|
1ST9-04SP
|
G1/4"X19
|
R1/4"X19
|
26.3
|
25.5
|
14
|
|
1ST9-04-06SP
|
G1/4"X19
|
R3/8"X19
|
27.7
|
28.5
|
16
|
|
1ST9-04-08SP
|
G1/4"X19
|
R1/2"X14
|
31
|
36
|
22
|
|
1ST9-06-04SP
|
G3/8"X19
|
R1/4"X19
|
29
|
26.5
|
16
|
|
1ST9-06SP
|
G3/8"X19
|
R3/8"X19
|
29
|
28.5
|
16
|
|
1ST9-06-08SP
|
G3/8"X19
|
R1/2"X19
|
33.5
|
36
|
22
|
|
1ST9-06-12SP
|
G3/8"X19
|
R3/4"X14
|
36.5
|
43.5
|
27
|
|
1ST9-08-04SP
|
G1/2"X14
|
R1/4"X19
|
37
|
30.5
|
22
|
|
1ST9-08-06SP
|
G1/2"X14
|
R3/8"X19
|
37
|
32.5
|
22
|
|
1ST9-08SP
|
G1/2"X14
|
R1/2"X14
|
37
|
36
|
22
|
|
1ST9-08-12SP
|
G1/2"X14
|
R3/4"X14
|
40
|
43.5
|
27
|
|
1ST9-08-16SP
|
G1/2"X14
|
R 1"X11
|
43.5
|
50
|
33
|
|
1ST9-12-06SP
|
G3/4"X14
|
R3/8"X19
|
41.5
|
36
|
27
|
|
1ST9-12-08SP
|
G3/4"X14
|
R1/2"X14
|
41.5
|
39.5
|
27
|
|
1ST9-12SP
|
G3/4"X14
|
R3/4"X14
|
41.5
|
43.5
|
27
|
|
1ST9-12-16SP
|
G3/4"X14
|
R1"X11
|
45.5
|
50
|
33
|
|
1ST9-16-12SP
|
G1"X11
|
R3/4"X14
|
47.5
|
47.5
|
33
|
|
1ST9-16SP
|
G1"X11
|
R1"X11
|
47.5
|
50
|
33
|
|
1ST9-16-20SP
|
G1"X11
|
R1.1/4"X11
|
53
|
59
|
41
|
|
1ST9-20SP
|
G1.1/4"X11
|
R1.1/4"X11
|
57
|
59
|
41
|
|
1ST9-24SP
|
G1.1/2"X11
|
R1.1/2"X11
|
61
|
62.5
|
48
|
90°彎英制外螺紋60°外錐面密封|英錐管外螺紋密封
