美制過渡接頭

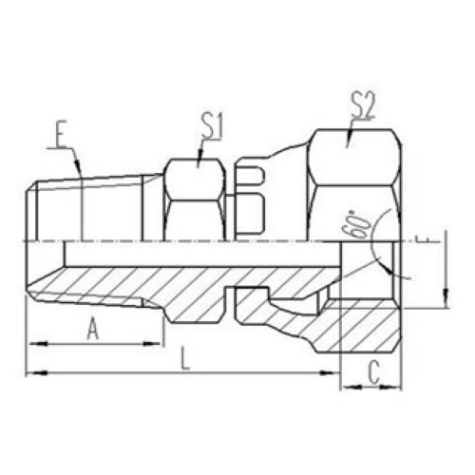

名稱：美制布錐管螺紋密封過渡接頭
詳細信息
美制布錐管螺紋密封過渡接頭的詳細介紹：
|
代 號
|
螺紋 THREAD
|
尺 寸 DIMENSIONS
|
|||||
|
PART NO.
|
E
|
F
|
A
|
C
|
S1
|
S2
|
L
|
|
2NB-02
|
Z1/8"X27
|
G1/4"X28
|
10.5
|
5.5
|
12
|
14
|
25.5
|
|
2NB-02-04
|
Z1/8"X27
|
G1/4"X19
|
10.5
|
5.5
|
14
|
19
|
27
|
|
2NB-04
|
Z1/4"X18
|
G1/4"X19
|
15
|
5.5
|
17
|
19
|
31
|
|
2NB-04-06
|
Z1/4"X18
|
G3/8"X19
|
15
|
6.3
|
17
|
22
|
32.5
|
|
2NB-04-08
|
Z1/4"X18
|
G1/2"X14
|
15
|
7.5
|
19
|
27
|
34
|
|
2NB-06-04
|
Z3/8"X18
|
G1/4"X19
|
16
|
5.5
|
19
|
19
|
32
|
|
2NB-06
|
Z3/8"X18
|
G3/8"X19
|
16
|
6.3
|
19
|
22
|
33.5
|
|
2NB-06-08
|
Z3/8"X18
|
G1/2"X14
|
16
|
7.5
|
19
|
27
|
35
|
|
2NB-08-06
|
Z1/2"X14
|
G3/8"X19
|
19.5
|
6.3
|
22
|
22
|
39.5
|
|
2NB-08-12
|
Z1/2"X14
|
G3/4"X14
|
19.5
|
10.9
|
27
|
32
|
44.5
|
|
2NB-08
|
Z1/2"X14
|
G1/2"X14
|
19.5
|
7.5
|
22
|
27
|
41
|
|
2NB-12
|
Z3/4"X14
|
G3/4"X14
|
19.5
|
10.9
|
30
|
32
|
44
|
|
2NB-12-08
|
Z3/4"X14
|
G1/2"X14
|
19.5
|
7.5
|
30
|
27
|
43.5
|
|
2NB-12-16
|
Z3/4"X14
|
G 1"X11
|
19.5
|
11.7
|
32
|
41
|
46.5
|
|
2NB-16
|
Z 1"X11.5
|
G 1"X11
|
25.5
|
11.7
|
36
|
41
|
52
|
|
2NB-20
|
Z1.1/4"X11.5
|
G1.1/4"X11
|
26.5
|
11
|
46
|
50
|
58
|
|
2NB-24
|
Z1.1/2"X11.5
|
G1.1/2"X11
|
27.5
|
13
|
50
|
55
|
61.5
|
|
2NB-32
|
Z2"X11.5
|
G2"X11
|
27.5
|
16
|
65
|
70
|
66.5
|
美制布錐管螺紋密封過渡接頭
