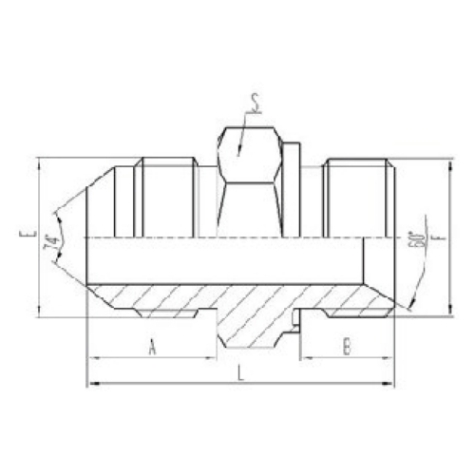

代 號 |
螺 紋 THREAD |
尺 寸 DIMENSIONS |
||||
|
PART NO. |
E |
F |
A |
B |
S |
L |
|
1JB-04-02WD |
7/16" X20 |
G1/8" X28 |
14 |
8 |
14 |
29.5 |
|
1JB-04WD |
7/16" X20 |
G1/4" X19 |
14 |
12 |
19 |
34 |
|
1JB-04-06WD |
7/16" X20 |
G3/8" X19 |
14 |
12 |
22 |
34.5 |
|
1JB-05-04WD |
1/2" X20 |
G1/4" X19 |
14 |
12 |
19 |
34 |
|
1JB-06-04WD |
9/16" X18 |
G1/4" X19 |
14 |
12 |
19 |
34 |
|
1JB-06WD |
9/16" X18 |
G3/8" X19 |
14 |
12 |
22 |
36.5 |
|
1JB-06-08WD |
9/16" X18 |
G1/2" X14 |
14 |
14 |
27 |
41 |
|
1JB-08-04WD |
3/4" X16 |
G1/4" X19 |
16.7 |
12 |
22 |
37 |
|
1JB-08-06WD |
3/4" X16 |
G3/8" X19 |
16.7 |
12 |
22 |
37.5 |
|
1JB-08WD |
3/4" X16 |
G1/2" X14 |
16.7 |
14 |
27 |
43.5 |
|
1JB-08-12WD |
3/4" X16 |
G3/4" X14 |
16.7 |
16 |
32 |
45 |
|
1JB-10-08WD |
7/8" X14 |
G1/2" X14 |
19.3 |
14 |
27 |
46.5 |
|
1JB-10-12WD |
7/8" X14 |
G3/4" X14 |
19.3 |
16 |
32 |
47.5 |
|
1JB-12-08WD |
1X1/16" X12 |
G1/2" X14 |
22 |
14 |
30 |
48.5 |
|
1JB-12WD |
1X1/16" X12 |
G3/4" X14 |
22 |
16 |
32 |
50 |
|
1JB-12-16WD |
1X1/16" X12 |
G1" X11 |
22 |
18 |
41 |
56 |
|
1JB-12-20WD |
1X1/16" X12 |
G1X1/4" X11 |
22 |
20 |
50 |
60 |
|
1JB-16-12WD |
1X5/16" X12 |
G3/4" X14 |
23 |
16 |
36 |
53 |
|
1JB-16WD |
1X5/16" X12 |
G1" X11 |
23 |
18 |
41 |
57 |
|
1JB-16-20WD |
1X5/16" X12 |
G1X1/4" X11 |
23 |
20 |
50 |
61 |
|
1JB-20-16WD |
1X5/8" X12 |
G1" X11 |
24.3 |
18 |
46 |
58 |
|
1JB-20WD |
1X5/8" X12 |
G1X1/4" X11 |
24.3 |
20 |
50 |
62 |
|
1JB-20-24WD |
1X5/8" X12 |
G1X1/2" X11 |
24.3 |
22 |
55 |
64 |
|
1JB-24-20WD |
1X7/8" X12 |
G1X1/4" X11 |
27.5 |
20 |
50 |
65.5 |
|
1JB-24WD |
1X7/8" X12 |
G1X1/2" X11 |
27.5 |
22 |
55 |
67.5 |
|
1JB-32WD |
2X1/2" X12 |
G/2" X11 |
34 |
20 |
75 |
75 |
注：螺母及襯套需另行訂貨。管子直徑D為公制時，配用螺母及襯套分別選用HNB200、HNB500。管子直徑為英制時，配用螺母及襯套分別選用HNB200、HNB300。
