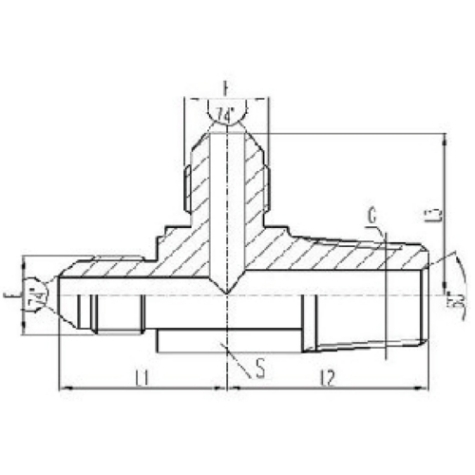

代 號 |
螺紋 THREAD |
尺 寸 DIMENSIONS |
|||||
|
PART NO. |
E |
F |
G |
L1 |
L2 |
L3 |
S |
|
AJJT-04-04-02SP |
7/16"X20 |
7/16"X20 |
R1/8"X28 |
24.5 |
21 |
24.5 |
11 |
|
AJJT-04SP |
7/16"X20 |
7/16"X20 |
R1/4'X19 |
26.6 |
25.5 |
26.6 |
14 |
|
AJJT-06-06-04SP |
9/16"X18 |
9/16"X18 |
R1/4'X19 |
26.9 |
25.5 |
26.9 |
14 |
|
AJJT-06SP |
9/16"X18 |
9/16"X18 |
R3/8"X19 |
28.5 |
28.5 |
28.5 |
16 |
|
AJJT-08-08-06SP |
3/4"X16 |
3/4"X16 |
R3/8"X19 |
32 |
30.5 |
32 |
19 |
|
AJJT-08SP |
3/4"X16 |
3/4"X16 |
R1/2"X14 |
34.8 |
36 |
34.8 |
22 |
|
AJJT-10-10-08SP |
7/8"X14 |
7/8"X14 |
R1/2"X14 |
37.8 |
36 |
37.8 |
22 |
|
AJJT-12SP |
1.1/16"X12 |
1.1/16"X12 |
R3/4"X14 |
44.2 |
43.5 |
44.2 |
27 |
|
AJJT-16SP |
1.5/16"X12 |
1.5/16"X12 |
R1"X11 |
49 |
50 |
49 |
33 |
|
AJJT-20SP |
1.5/8"X12 |
1.5/8"X12 |
R1.1/4"X11 |
55.5 |
56.5 |
55.5 |
41 |
|
AJJT-24SP |
1.7/8"X12 |
1.7/8"X12 |
R1.1/2"X11 |
62.5 |
62.5 |
62.5 |
48 |
注：螺母及襯套需另行訂貨。管子直徑D為公制時，配用螺母及襯套分別選用HNB200、HNB500。管子直徑為英制時，配用螺母及襯套分別選用HNB200、HNB300。
