美制過渡接頭

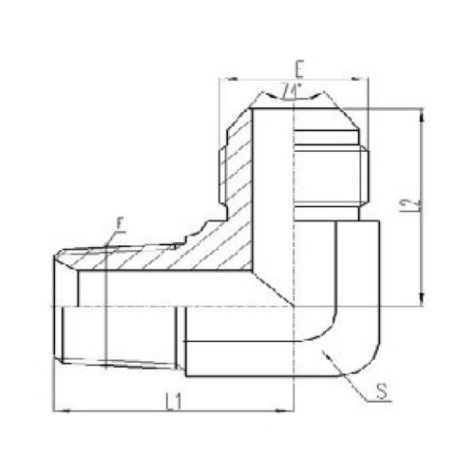

名稱：美制JIC螺紋74°錐面密封過渡接頭
詳細信息
美制JIC螺紋74°錐面密封過渡接頭的詳細介紹：
|
代 號
|
螺紋 THREAD
|
尺 寸 DIMENSIONS
|
|||
|
PART NO.
|
E
|
F
|
L1
|
L2
|
S
|
|
1JT9-04-02SP
|
7/16"X20
|
R1/8"X28
|
24.5
|
21
|
11
|
|
1JT9-04SP
|
7/16"X20
|
R1/4"X19
|
26.6
|
25.5
|
14
|
|
1JT9-04-06SP
|
7/16"X20
|
R3/8"X19
|
27.5
|
28.5
|
16
|
|
1JT9-04-08SP
|
7/16"X20
|
R1/2"X14
|
31.5
|
36
|
22
|
|
1JT9-05-02SP
|
1/2"X20
|
R1/8"X28
|
26.6
|
23.5
|
14
|
|
1JT9-05-04SP
|
1/2"X20
|
R1/4"X19
|
26.6
|
25.5
|
14
|
|
1JT9-05-06SP
|
1/2"X20
|
R3/8"X19
|
27.5
|
28.5
|
16
|
|
1JT9-06-02SP
|
9/16"X18
|
R1/8"X28
|
26.9
|
23.5
|
14
|
|
1JT9-06-04SP
|
9/16"X18
|
R1/4"X19
|
26.9
|
25.5
|
14
|
|
1JT9-06SP
|
9/16"X18
|
R3/8"X19
|
28.5
|
28.5
|
16
|
|
1JT9-06-08SP
|
9/16"X18
|
R1/2"X14
|
32
|
36
|
22
|
|
1JT9-08-04SP
|
3/4"X16
|
R1/4"X19
|
32
|
28
|
19
|
|
1JT9-08-06SP
|
3/4"X16
|
R3/8"X19
|
32
|
30.5
|
19
|
|
1JT9-08SP
|
3/4"X16
|
R1/2"X14
|
34.8
|
36
|
22
|
|
1JT9-10-06SP
|
7/8"X14
|
R3/8"X19
|
37.8
|
32.5
|
22
|
|
1JT9-10-08SP
|
7/8"X14
|
R1/2"X14
|
37.8
|
36
|
22
|
|
1JT9-10-12SP
|
7/8"X14
|
R3/4"X14
|
41
|
43.5
|
27
|
|
1JT9-10-16SP
|
7/8"X14
|
R1"X11
|
44.5
|
50
|
33
|
|
1JT9-12-08SP
|
1.1/16"X12
|
R1/2"X14
|
44.2
|
39.5
|
27
|
|
1JT9-12SP
|
1.1/16"X12
|
R3/4"X14
|
44.2
|
43.5
|
27
|
|
1JT9-12-16SP
|
1.1/16"X12
|
R1"X11
|
48
|
50
|
33
|
|
1JT9-16-12SP
|
1.5/16"X12
|
R3/4"X14
|
49
|
47.5
|
33
|
|
1JT9-16SP
|
1.5/16"X12
|
R1"X11
|
49
|
50
|
33
|
|
1JT9-16-20SP
|
1.5/16"X12
|
R1.1/4"X11
|
54
|
59
|
41
|
|
1JT9-20-16SP
|
1.5/8"X12
|
R1"X11
|
55.5
|
56.5
|
41
|
|
1JT9-20SP
|
1.5/8"X12
|
R1.1/4"X11
|
55.5
|
59
|
41
|
|
1JT9-20-24SP
|
1.5/8"X12
|
R1.1/2"X11
|
59.4
|
62.5
|
48
|
|
1JT9-24-16SP
|
1.7/8"X12
|
R1"X11
|
62.5
|
60
|
48
|
|
1JT9-24SP
|
1.7/8"X12
|
R1.1/2"X11
|
62.5
|
62.5
|
48
|
|
1JT9-32SP
|
2.1/2"X12
|
R2"X11
|
75
|
67
|
63
|
注: 螺母及襯套需另行訂貨.管子直徑D為公制時,配用螺母及襯套分別選用HNB200、HNB500。管子直徑為英制時，配用螺母及襯套分別選用HNB200、HNB300。
美制JIC螺紋74°錐面密封過渡接頭
